Powered Drum Tipper

STE05-RRH01 / STP05-RRH01-Ex

Our powered drum tipper can be supplied as an electric model or pneumatic model for ATEX areas. The powered clamping head handles drums and barrels from 50 to 220 litres. quickly and safely.

WATCH FULL VIDEO

Features

We design, build and test all our powered drum tippers in our UK manufacturing facility. Sourcing the highest-quality parts ensures that all our units require minimal maintenance.

Fast and efficient drive system

Electric version: Suitable for safe areas, this fully-powered drum tipper comprises of a 24V onboard battery bank and a powerful drive motor. When the unit is not in use, simply connect the mains-powered charger to recharge the batteries.



Pneumatic: Suitable for hazardous areas, our pneumatic barrel tippers can be certified for use in ATEX environments. Operators connect an airline to power pneumatic-hydraulic functions, which power the lift, clamp, rotation and drive of the machine.

700W DC drive motor
Our powered barrel tippers are fitted with flexible gripping pads to handle steel and plastic industrial drums.
  • Improve safety
  • Increase efficiency
  • Fully adjustable
  • Lift from pallets
  • Low maintenance
  • 20+ year lifespan
Increase manufacturing efficiency with a powered barrel tipper.

Specification

STE05-RRH01 Electric Powered Drum Tipper

  • Safe working load (SWL)

    300kg

  • Functions

    Powered lift, clamp, rotation and drive

  • Power details

    Two, on-board 100Ah batteries powering an electric-hydraulic pump and electric drive motor, mains 230v external smart battery charger

  • Controls

    Silicone booted buttons, emergency stop, removable key switch, digital battery condition meter

  • Lift height

    1500mm

  • Tipping clearance

    1500mm at 15° tip angle / 1400mm at 30° tip angle (205 litre drum)

  • Drum compatibility

    Steel, plastic and fibreboard drums, 50-220 litres (incl. MAUSER drums)

    Note: L-ring plastic drums require a separate INS02 attachment

STP05-RRH01-Ex ATEX Pneumatic Powered Drum Tipper

  • Safe working load (SWL)

    300kg

  • Functions

    Power lift/lower, power clamp, power rotation, manual push/pull

  • Power details

    Air powered - requires min: 400L/min, optimum: 760L/min at 6 bar with 13mm flexible air hose

  • Pneumatic drive specification

    Speed of travel 0.45m/s maximum based on a 6-bar air supply with 760L of flow, speed adjustment control on rear panel

  • Controls

    Pneumatic control buttons and emergency stop

  • Lift height

    1500mm


  • Tipping clearance

    1470mm at 15° tip angle / 1400mm at 30° tip angle (205 litre drum)

Power Drive Power Clamp Drum Tipper (STE05-RRH01)
Play Video

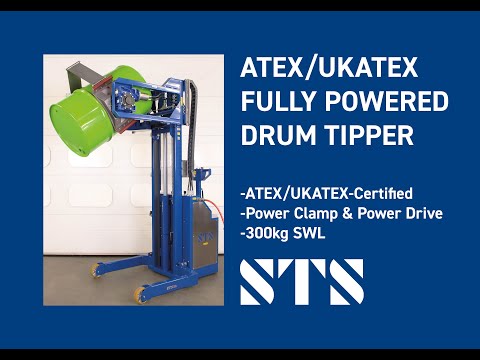

Power Drive Power Clamp Drum Tipper (STE05-RRH01) ATEX Pneumatic Hydraulic Fully Powered Drum Tipper W/Power Clamp & Power Drive (STP05-RRH01-Ex) Power Clamp Drum Adaptors (INS02)

Technical specification

See the full technical specification for our Powered Drum Tipper for details such as weight, dimensions and load capacity.
view pdf

Instruction manual

View the instruction manual for our Powered Drum Tipper, which details how to safely operate and maintain the unit.
view pdf

Upgrades

We understand that every application is unique, which is why we offer customisation and upgrades to tailor your machine to your specific requirements.

Stainless-steel model for clean environments

We can offer each unit in stainless steel, suitable for clean rooms and good manufacturing practice (GMP) areas. Our stainless steel drum clamp lifters are made from 304-grade material, and the finish is smooth and clean thanks to our modern vibratory polishing process. We use nickel/chrome-plated hydraulic rams on these versions of the drum tipper. The lift chains are zinc-plated to ensure corrosion resistance.

Stainless-steel
Stainless Steel Drum Tipper emptying a 205L steel drum with a tap for easy decanting.
STS equipment is of exceptional quality and at the forefront of handling innovation – so much so that many other pieces of handling equipment lay abandoned, with operators preferring to use the STS equipment!
The quality of the equipment is exceptional. Since implementing this equipment the risks associated with our site’s manual handling tasks have been greatly reduced and processes have become more efficient.
The product has been a massive success with the employees, and the fact that you allowed us to try before buying was a hit. All in all working with you and your team has been a very good experience.
STS is always the first place I look if I need handling equipment!
It is a refreshing experience to work with a business that is interested in developing its product in line with the customer’s requirements. Be assured, we will always recommend your services to people within our organisation and outside our organisation when the opportunity arises.
We are completely satisfied with the product. It completely removes our manual handling risk from manoeuvring drums and is suitable in our restricted space.
